1051646

2470480 2261227

PISTON & SHOE ASSY

CAT 735 740 775 D350E D400E
ARTICULATED TRUCK;
CAT 554 FORWARDED CAT
777F TRUCK CAT 844 WHEEL
TRACTOR;
CAT D6T D10T TRACK-TYPE
TRACTOR CAT 990 WHEEL
LOADER;
CAT 776D 777D TRACTOR
CAT 365B 365BL EXCAVATOR

1889636

1051649  1987405

BARREL

1889637

RETAINER PLATE

1051648

BALL GUIDE

1051653

2470477

PIN(3)

1051650

SPACER

1051651

SPRING

1806213

RETAINING RING

1889634

VALVE PLATE

1946853

VALVE PLATE

2457350

VALVE PLATE

Part No.

Replaces Parts No

Description

Equipment

1388172

1287068 1850250 1687943 1481226

PISTON (9)&SHOE ASSY

CAT D5N D11R TRACK TYPE
TRACTOR;CAT 924G 966G 97G
980G 924H 966H 972H 980H
988H WHHEL LOADER;CAT
824G 834H WHEEL
TRACTOR;CAT 5090B 5110B
345C 365B 365C 385B 385C
EXCAVATOR;CAT 35 45 55
CHALLENGER CAT TH330B
350B 355B 360B
TELEHANDLER;CAT CP54
CS54 CS533E CP533E CS563E
CS563D CS533C CS563C
CP563D CS56 CP56 CS533D
CS531D CS531C VIBRATORY
COMPACTOR;CAT PM-465
COLD PLANER CAT 825G
826G 825H 836H SOIL
COMPACTOR

1287069

1850250 2330455  1556654

BARREL

1388174

2567875 1287071 1687944 1899382    2585194

RETAINER PLATE

1388175

1287072  1850253 2959540

BALL GUIDE

1388176

1287074  1281097

PIN(3)

1388177

1281098 1687942 1949481

SPACER

1287073

1866213 1287073 1481505 1687941  1281092

SPRING

960015

1949480  1281093

RETAINING RING

1388173

1287070

VALVE PLATE LH

3134424

1481219  1850273

VALVE PLATE M

1756796

VALVE PLATE RH

9T8249

PISTON & SHOE ASSY

CAT 938F 938G WHEEL LOADER
CAT RM350 RR250 RM350B
SM250  SS250 RECLAIMER
MIXER CAT D250E D300E
ARTICULATED TRUC; CAT
IT38 F IT38 G INTEGRATED
TOOLCARRIER

9T8250

BARREL

9T3860

RETAINER PLATE

9T3859

BALL GUIDE

9T3862

RETAINER

9T3861

WASHER

9T3857

1035790 9U9095

PRESS PIN

9T3858

1313489 7U9189

COIL SPRING

41683

1344335

SNAP RING

9T8251

VALVE PLATE

9T3864

WASHER

Part No.

Replaces Parts No

Description

Equipment

1559112

2334880

PISTON (9)& SHOE ASSY

CAT 330D 330DL 345B 345BL
345C 345CL 385BL 385C
385CL;5090B EXCAVATOR;CAT
12H  14H  16H  120H  135H  140H  13H
160H  163H MOTOR
GRADER;CAT 651E 657E 657G
938G 938H 950G 962G WHEEL
LOADER CAT IT38G IT62G
INTEGRATED TOOLCARRIER

1559136

2667836

BARREL

1559115

2667837

RETAINER PLATE

1559116

2667838

BALL GUIDE

1559149

1949480

RETAINING RING

1559137

VALVE PLATE RH

1559117

SPRING

1559119

1949481

PLATE

1559118

1949479

PIN(3)

1949478

VALVE PLATE LH

9T4627

PISTON (9)& SHOE ASSY

CAT 550 570 580 550B 560B 570B 580B WHEEL HARVESTER; CAT 554  574 FORWARDED CAT CHALLENGER 65 65B 65C  65D 70C 75 75C 85C

9T4621

1835882

BARREL ASSY.

9T4636

RETAINER PLATE

9T4633

1784001

DRIVE SHAFT

1835883

Part No.

Replaces Parts No

Description

Equipment

1429425

1419431

PISTON (9)& SHOE ASSY

CAT C9 C11 C13 C15 C18 PETROLEUM
ENGINE CAT CB543D VIBRATORY
COMPACTOR; CAT D3C D4G D5G D5K D6N
TRACK TYPE TRACTOR CAT 933C TRACK
LOADER

1429424

2873789 1887460

BARREL

1429435

1413214

BALL GUIDE

1429434

RETAINER PLATE

1429427

SWASH PLATE

3187420

2569358

VALVE PLATE

1429429

SHAFT

Part No.

Replaces Parts No

Description

Equipment

1307798

LH SET:BARREL&VALVE PLATE

CATM312 M313C M313D EXCAVATOR

1591770

BARREL&VALVE PLATE RH

1307800

1265632

PISTON SASSY

1307802

CUP SPRING(4)

1307803

2290624

SWASH PLATE

1307811

RETAINER PLATE

1307812

BALL GUIDE

Part No.

Replaces Parts No

Description

Equipment

1076666

PISTON (9)& SHOE ASSY

CAT 307 307B 307C EXCAVATOR CAT 305 5 MINI-EXCAVATOR

1076667

SET:BARREL&VALVE PLATE

1076668

RETAINER PLATE

1076878

BALL GUIDE

1076877

THRUST PLATE

1076662

SWASH PLATE

993065

PRESS PIN

1076879

COIL SPRING

1119964

DRIVE SHAFT

6E6151

6E3254 2355767

PISTON(9) & SHOE

CAT 416B 426B 436B 416C 426C 436C 428C
416D 424D 432D 442D； 438C 430D 420D
420E 430E 450E PUMP； CAT 990 WHEEL
LOADEER PUMP CAT 84 4  WHEEL
TRACTOR； CAT D11N D11R TRACK-TYPE
TRACTOR； CAT D250E D300E 730
725ARTICULATED TRUCK； CAT 711D
766D 773D 773E 773F； 784C QUARRY OFF
HIGHWAY TRUCK

6E6154

6E4008  1929221

RETAINER PLATE

6E6155

6E3258  1960225

BALL GUIDE

6E4007

6E6152  1960226

BARREL

6E6158

7X2908

RING

1205724 6E3256

6E6153

1929219  1970677

VALVE PLATE

6E6157

1683379

PIN(3)

6E4009

SPRING

Part No.

Replaces Parts No

Description

Equipment

6E0712

1463315  1992441

PISTON(9) & SHOE ASSY.

CAT M315 M318 M316C M315C M318C
M315D M318D EXCAVATOR PUMP； CAT 623F 623E 623G WHEEL TRACTOR； CAT
793C 797B 797 TRUCKK

6E0711

1992439 3084200

SET:BARREL&VALVE PLATE VALVE

1175760  1782826

PLATERS CHANGE FROM LH

1992395  1463314

TO RH

6E0726

RETAINER PLATE

6E1569

BALL GUIDE

Part No.

Replaces Parts No

Description

Equipment

7I8178

PISTON & SHOE ASSY

CAT 350 350 L EXCAVATOR MAIN PUMP

7I8179

SET:BARREL&VALVE PLATE LH

7I8180

SET:BARREL&VALVE PLATE RH

7I8184

THRUST PLATE

998144

RETAINER PLATE

998141

BALL GUIDE

7I8152

SPRING

7I8143

DRIVE SHAFT FRONT

7I8144

DRIVE  SHAFT REAR

4I6448

7Y4259 997973

PISTON

CAT E300L

7Y4253

5I9548 997977

BARREL

4I7787

VALVE PLATE

7Y4261

997983

RETAINER PLATE

7Y4262

997984

THRUST PLATE

7Y4251

SHAFT

7Y4257

E5I8633 997981

SPACER

7Y4254

997978

BALL GUIDE

1211577

SEAL KIT

Part No.

Replaces Parts No

Description

Equipment

9T7761

PISTON

CAT 446 446B BACKHOE LOADER

9T7757

BARREL

9T1633

VALVE PLATE

9T7759

RETAINER PLATE

9T7758

THRUST PLATE

9T1634

SHAFT

Part No.

Replaces Parts No

Description

Equipment

6E0712

1463315

PISTON(9)& SHOE ASSY.

CAT M315 M318 M316C M315C M318C M315D M3 1 8 D EXCAVATOR PUMP

1992441

1992439  3084200

SET:BARREL&VALVE PLATE VALVE

6E0711

1175760  1782826

PLATERS CHANGE FROM LH

1992395  1463314

TO RH

6E0726

RETAINER PLATE

6E1569

BALL GUIDE

1656976

995713  1249931

PISTON(7)

CAT M312 M313C 322C CAT325C CAT330C 330D EXCAVATOR MOTOR TRAVEL

9T3370

BARREL

1249929

VALVE PLATE M

1676701

9T3366  1051516

RETAINER PLATE

9T3745

995714

PISTON RING

1249930

9T3369 995712

CENTER PIN

1249932

SPACER 5 , 3MM

1249933

SPACER 5 ,4MM

1249934

SPACER 5 , 5MM

1249935

SPACER 5 , 6MM

1249936

SPACER 5 , 7MM

1249937

SPACER 5 , 8MM

1249938

SPRING

1134419

1051517  2533982

SCREW(2)

1910886

DRIVE SHAFT

Part No.

Replaces Parts No

Description

Equipment

963989

SET PISTON   W/ RET. PLATE

CAT E200 B EL200 B EXCAVATOR PUMP

963990

BARREL ASSY.

963995

BALL GUIDE

963996

SPACER

964001

SPRING

963988

THRUST PLATE

963991

SEAL RETAINER

963997

BARREL SEAL

963992

BEARING PLATE

963993

VALVE PLATE FR

963994

VALVE PLATE RE

963986

DRIVE SHAFT FR

964000

DRIVE SHAFT RE

1772503

2835980

PISTON(7)(2)

CAT 330C 330CL 345B  345BL DOUBLE PUMP  CAT 541 551 552 511 TK1051  1090        1190  1290  1390 TK711 TK721 TK722 TK732 TK741 TK751   TK521 522 532 2290 TRACK FELLER BUNCHER

1884097

BARREL(2)

1948261

1884098

VALVE PLATE R

1772511

RETAINER PLATE(2)

1458460

2835981

PISTON RING(2)

1772502

CENTER PIN(2)

1772504

2478851 KIT

SPACER  12,2MM(2)

1772505

SPACER  12,3MM(2)

1772506

SPACER  12,4MM(2)

1772507

SPACER  12,5MM(2)

1772508

SPACER  12,6MM(2)

1772509

SPACER  12,7MM(2)

1772510

SPRING(2)

1134420

2160029

SCREW(2)

2160037

DRIVE SHAFT

2160036

SHAFT

1948263

1884101

VALVE PLATE L

3119543  3119545

Part No.

Replaces Parts No

Description

Equipment

C1119913

1020741

PISTON(9)& SHOE ASSY.

CAT 854G 992G 994 994D WHEEL LOADER  CAT 5080 FRONT SHOVEL CAT 375 375L  EXCAVATOR CAT 5130 5230 EXCAVATOR

C1358868

1020742 1342237 6E1031  1371380

BARREL&VALVE PLATE ASSY.

C6E3845

RETAINER PLATE

C6E3846

BALL GUIDE

C1342236

DRIVE SHAFT

C1389219

BARREL&VALVE PLATE ASSY.

9T3868

PISTON

CAT 918F 924F 928G  988F WHEEL LOADER PUMP CAT 3030 D4H D4HTSK D5M D8L TRACK TYPE TRACTOR PUMP CAT PM56 5  PM56 5 B COLD PLAYER PUMP     CAT IT18F IT24F IT28F IT28G INTEGRATED TOOLCARRIER PUMP       CAT D4H TRACK SKIDDER PUMP CAT 65C 75C 75D  85C  85D CHALLENGER PUMP

9T3863

BARREL

9T2232

VALVE PLATE R

9T3860

RETAINER PLATE

9T3862

RETAINER

9T2000

5E0857

SPACER

9T3859

BALL GUIDE

9T3864

WASHER

41683

5D7331

SNAP RING

9T3861

WASHER

9T3858

SPRING

Part No.

Replaces Parts No

Description

Equipment

4I6448

7Y4259 997973

PISTON

CAT 322BL 322L 325B 325 325BL 325L 325LN 330 330B  330BL 330L       350 350L  CAT 375 375L 352BL M325B W330B EXCAVATOR  SWING MOTOR  CAT 5080 FRONT SHOVEL CAT TK1051 TRACK  FELLER BUNCHER

1111116

4I7786

BARREL

4I7787

VALVE PLATE

7Y4261

997983

RETAINER PLATE

7Y4262

997984

THRUST PLATE

7Y4251

SHAFT

7Y4257

E5I8633 997981

SPACER

7Y4254

997978

BALL GUIDE

7Y4292

FRICTION PALTE(3)

7Y4293

SEPERATON PLATE(4)

1211577

1843834  1184109

SEAL KIT

9T3868

PISTON

CAT 416 428 BACKKHOE LOADER PUMP

9T3863

BARREL

9T2232

VALVE PLATE R

9T3860

RETAINER PLATE

9T3862

RETAINER

9T2016

SHAFT

9T2000

SPACER

9T3859

BALL GUIDE

9T3864

WASHER

41683

SNAP RING

9T3861

WASHER

9T3858

SPRING

Part No.

Replaces Parts No

Description

Equipment

4I9469

SET PISTON W/RET.PLATE

CAT E200B BL2008B EXCAVATOR PUMP

4I9472

SET BARREL W/ VALVE PLATE FR

4I9473

SET BARREL W/VALVE PLATE RE

964387

1225114

BALL GUIDE

964388

SPACER

964389

1948385

SPRING

875192

4I9468

THRUST PLATE

4I9467

DRIVE SHAFT FR

4I9471

DRIVE SHAFT FR

5I8401

2344680

PISTON(7)(2)

CAT 330 330B 330BL 330LN 330BLN 330L 345B 345BL 354BLC

5I4311

BARREL(2)

5I4476

VALVE PLATE L

5I8404

RETAINER PLATE (2)

5I8402

2144525

PISTON RING(2)

5I4403

CENTER PIN(2)

5I8405

SPACER(2)

5I8406

SPACER(2)

5I8407

SPACER(2)

5I8408

SPACER(2)

5I8409

SPACER(2)

5I8410

SPACER(2)

5I8411

SPACER(2)

5I8412

SPACER(2)

5I8413

SPACER(2)

5I8403

SPRING(2)

5I4469

GEAR

1134420

2160029

SCREW(2)

5I4475

1843958

DRIVE SHAFT

5I4485

1843959

SHAFT

5I4486

VALVE PLATE R

7Y5270

KEY

5I8449

SHAFT

1298001

GEAR

5I4470

STUB SHAFT

1915709

875176  1140491

PISTON W/ RET PLATE(2)

CAT 318C 319C 320 320B 320C 320D 321C 323D EXCAVATOR DOUBLE PUMP

1733496

BARREL W/VALVE PLATE L

1733498

BARREL W/VALVE PLATE R

2003340 2003368

1733392

2003263

IDLE SHAFT

1733473

CREEP PLATE(2)

7Y4215

SPACER(2)

1733427

BALL GUIDE(2)

1184057

SPRING(2)

1733391

DRIVE SHAFT

Part No.

Replaces Parts No

Description

Equipment

1709972

2959688

PISTON

CAT 345BL SWING MOTOR

1709976

BARREL

1709982

VALVE PLATE

1709980

RETAINER PLATE

1709981

THRUST PLATE

1709974

SHAFT

1709989

FRICTION PALTE(3)

1709977

BALL GUIDE

1709990

SEPERATONPLATE(4)

Part No.

Replaces Parts No

Description

Equipment

1915709

875176  1140491

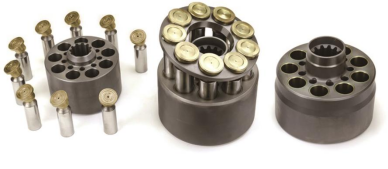

PISTON W/ RET PLATE(2)

CAT 318C 319C 320 320L 320B 320C 320D 321C 323D EXCAVATOR DOUBLE PUMP

875185

1184054

BARREL W/VALVE PLATE R

875178

IDLE SHAFT

875192

CREEP PLATE(2)

7Y4215

SPACER(2)

964387

BALL GUIDE

964389

SPRING(2)

875196

DRIVE SHAFT
